Walbro TCA Fuel Pump Kits

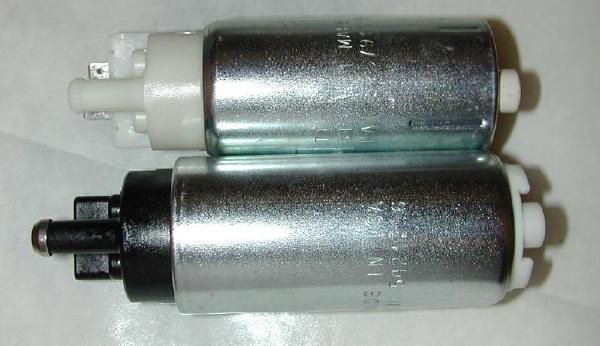

Walbro makes many different fuel pumps. The pumps that I sell are called Gen-II pumps. All the part numbers start with GSS. Their previous generation pumps are turbine pumps. They don't flow quite as much as the new GSS pumps, but they are a bit shorter and will fit in more applications.

Walbro only lists an OE replacement application in their catalog if it is a simple, drop-in replacement. They try to use the GSS pump whenever possible. Somethimes the GSS pump is too long for a direct replacement. In those instances, they specify the earlier pump

In some cases, if you are willing to modify your fuel pump assembly, you can fit a GSS pump into applications where the catalog lists a TCA kit. This will allow you to take advantage of the high-performance versions of the Gen-II pumps.

In many cases, the output of the pump is connected to a hard fuel line inside the tank via a short piece of fuel hose. That hard line then passes through the fuel tank cover and connects to the fuel lines. Most of the time, you can cut a short piece of that hard line in order to fit a GSS pump in the tank.

I some case, the output nipple of the fuel pump fits into a flared section of fuel line with an o-ring. About the only way to get a GSS pump on that fuel pump assembly is to cut that flared section off and use a piece of hose w/ clamps. See the Galant VR-4 page for some photos.

In a few cases, all the connections in the tank are plastic. That can make life a bit difficult, but you can still get a larger pump in the tank. Check your tank assembly before order something, so you'll have an idea of what the installation will be like.

Whatever you decide to do, DO NOT modify the hanger to lower the pickup point of the pump. The engineers designed it at a certain level. You may locate the pickup too close to the floor of the tank, and you may starve the pump and burn it up.

NOTE:
All of the vehicles listed on this page are NOT guaranteed to accept a GSS fuel pump where a TCA kit is specified. This is just a list of the vehicles that specify the TCA kit as an OE replacement. If you are considering attempting to install a GSS pump in one of these vehicles, you should remove your fuel tank assembly first to determine if you can modify the assembly to accept the GSS pump.

The TCA318 kit is specified for the following vehicles:

'95-'98 Chrylser Sebring 2.0L & 2.5L
'95-'00 Dodge Avenger 2.0 & 2.5L
'92-'96 Dodge Colt Vista 1.8L & 2.4L
'90-'91 Dodge Colt 1.5L & 1.6L
'92-'96 Eagle Summit Wagon
'90-'91 Eagle Summit 1.5L & 1.6L
'92-'94 Eagle Talon 1.8L
'92-'98 Eagle Talon 2.0L [non turbo]
'95-'98 Mazda Protege w/ original Denso pump
'92-'94 Mazda Protege
'92-96 Mitsubishi Expo FWD
'93-96 Mitsubishi Expo LRV FWD
'91-'98 Mitsubishi Galant FWD
'92-'94 Mitsubishi Eclipse 1.8L
'92-'98 Mitsubishi Eclipse 2.0L [non turbo]
'90-'92 Mitsubishi Mirage
'92-'94 Plymouth Laser 1.8L
'92-'94 Plymouth Laser 2.0L [non turbo]
'92-'94 Plymouth Colt Vista 1.8L & 2.4L

TBD

The TCA321 kit is specified for the following vehicles:

'90-'92 Geo Storm 1.6L
'91-'96 Dodge Stealth 3.0 SOHC and DOHC
'91 Isuzu Stylus 1.6L SOHC and DOHC
'92-'93 Isuzu Stylus 1.6L and 1.8L
'90-'92 Isuzu Impulse 1.6L, 1.8L, & 1.6 Turbo
'91-'99 Mitsubishi 3000GT 3.0 SOHC and DOHC
'91-'92 Mitsubishi Galant VR-4
'91-'92 Mitsubishi Galant AWD

Use a FPD010, FPD210, FPD011, or FPD012 kit that we created. Along with a pumps, our kits include a the same pickup filter that you see in the TCA321 photo, a short piece of hose w/ clamps, and a foam sleeve.

I know the Galant and 3000GT don't need a wiring adapter [the OE wiring will plug right into the walbro GSS pumps], but I'm not sure about the other models.

The TCA324 kit is specified for the following vehicles:

'93 Geo Prizm 1.8L
'93-'95 Geo Prizm 1.6L
'92-'00 Lexus ES300 3.0L
'92 Lexus LS300 3.0L
'95-'99 Toyota Avalon 3.0L
'92-'01 Toyota Camry 3.0L
'86-'88 Toyota Camry 2.0L
'92-'01 Toyota Camry 2.2L
'87-'88 Toyota Corolla 1.6L
'93-'00 Toyota Corolla 1.8L
'85-'88 Toyota MR2 1.6L
'99-'01 Toyota Solara 2.2L and 3.0L
'92-'95 Toyota Paseo 1.5L
'90-'94 Toyota Tercel 1.5L
'85-'95 Toyota 4Runner 2.4L
'96-'00 Toyota 4Runner 2.7L
'88-'95 Toyota 4Runner 3.0L
'96-'01 Toyota 4Runner 3.4L
'84-'95 Toyota Pickup 2.4L
'88-'95 Toyota Pickup 3.0L
'96-'00 Toyota RAV4 2.0L
'98-'00 Toyota Sienna 3.0L
'94-'98 Toyota T100 Pickup 2.7L
'93-'98 Toyota T100 Pickup 3.4L
'86-'89 Toyota Van 2.2L
'84-'85 Toyota Van 2.0L

Use a FPT101, FPT201, FPT102, or FPT103 kit that we created. Along with a pump, our kits are made up of the same pickup filter as the one in the TCA324 kit, a short piece of hose w/ clamps, a wiring adapter w/ butt connectors, and a foam sleeve.

The TCA380 kit is specified for the following vehicles:

'92-'95 Mazda 323 1.6L
'92-'95 Mazda MX3 1.6L & 1.8L

Use a FPT101, FPT201, FPT102, or FPT103 kit that we created. Along with a pump, our kits are made up of the same pickup filter as the one in the TCA380 kit, a short piece of hose w/ clamps, a wiring adapter w/ butt connectors, and a foam sleeve. & The photo shows a zip-tie, but I don't include that. You should be able to find one of those, easily.

The TCA3307 kit is specified for the following vehicles:

'95-'01 Toyota Tacoma 2.4L & 2.7L
'95-'98 Toyota Tacoma 3.0L
'99-'01 Toyota Tacoma 3.4L

Use a FPT101, FPT201, FPT102, or FPT103 kit that we created. Along with a pump, our kits are made up of the same pickup filter as the one in the TCA3307 kit, a short piece of hose w/ clamps, a wiring adapter w/ butt connectors, and a foam sleeve. & The photo shows a zip-tie, but I don't include that. You should be able to find one of those, easily.

The TCA3309 kit is specified for the following vehicles:

'90-'93 Mazda Miata 1.6L

Use a FPM007, FPM207, FPM008, or FPM009 kit. Many folks have used it with great success after they modify the hanger assembly. Notice how the kit contains the same pickup filter and rubber isolator.
