Buy a Walbro In-tank Fuel Pump

If you have a special project or want to experiment with a certain pump, you can order the pump alone by its Walbro part number.   Otherwise check out the Applications page for kits for specific vehicles.

different inlet formats


Left pump is like 516, GSS242, GSS307, and GSS340
Middle pump is like GSS250, F20000141, GSS317, and GSS342
Right pump is like GSS278, GSS315, and GSS341

new inlet format
The new F20000169 fuel pump



Inlet Type Available Pumps
Large, centered inlet
[e.g. Mustang]

526 [155 ltr/hr] - $70
516 [155 ltr/hr w/ noise suppression] - $70
GSS242 [190 ltr/hr] - $80
GSS307 [255 ltr/hr] - $90
GSS340 [high pressure 255] - $105

Medium, offset inlet
[e.g. GM]
info
F20000169 [high pressure 255] - $105
Small, offset inlet inline w/ outlet
[e.g. Civic, WRX]

GSS250 [190 ltr/hr] - $80
F20000141 [high pressure 190] - $90
GSS317 [255 ltr/hr] - $90
GSS342 [high pressure 255] - $105

Small, offset inlet opposite outlet
[e.g. 240SX, RX-7]

GSS278 [190 ltr/hr] - $80
GSS315 [255 ltr/hr] - $90
GSS341 [high pressure 255] - $105

NOTE: The above table lists ONLY fuel pumps. If you get one of those pumps, you will NOT receive any other parts [e.g. pickup filter, wiring, etc.].

Specialty Fuel Pumps

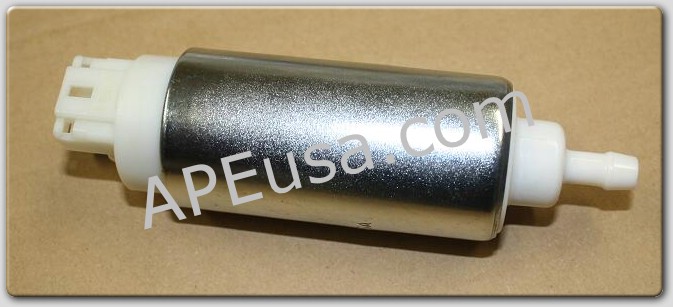

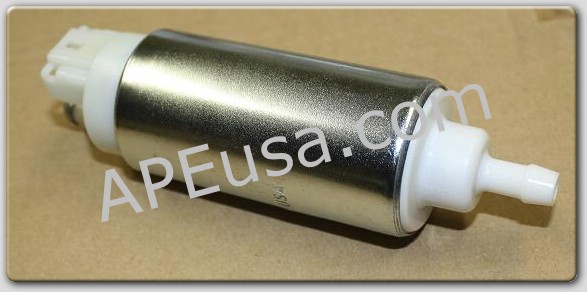

GSC404
Used in many Arctic Cat applications
80 ltr/hr (21 gal/hr) at 250 kPa (36.25 psi)
looks like this
- $115 -
F20000286
Used in some Arctic Cat and Polaris applications
(a.k.a. FGB-3)
45 ltr/hr (11.9 gal/hr) at 400 kPa (58 psi) with 13.8V source draws 5.0 amps max
looks like this
- $120 -
F20000107
Used in some Victory and Polaris applications
150 ltr/hr (39.7 gal/hr) at 400 kPa (58 psi) with 14V source draws 6.6 amps
looks like this
- $100 -

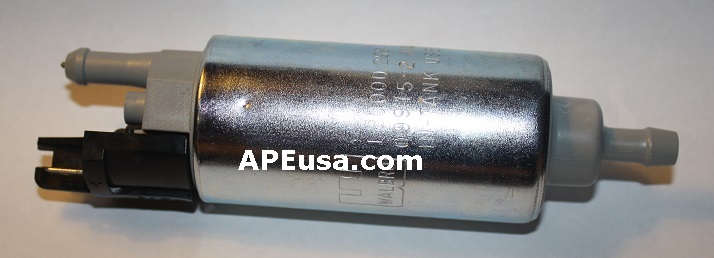

F20000299
(a.k.a. FGB-11)
we're working on getting specs
looks like this
- $115 -

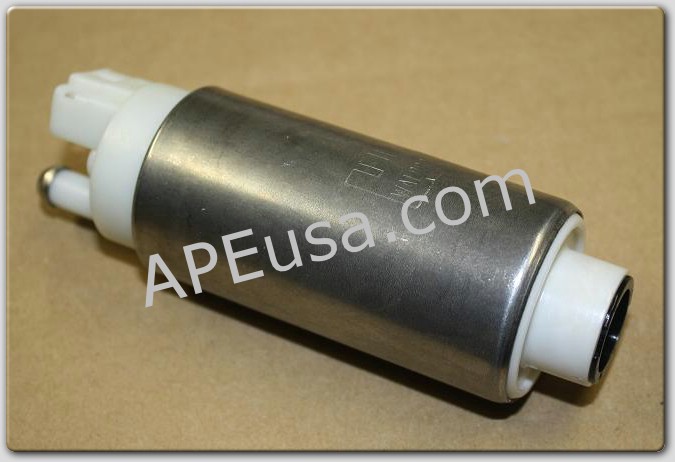

F20000110 190 ltr/hr (50.2 gal/hr) at 400 kPa (58 psi) with 13V source draws 5.8 amps
shutoff pressure 1100-1370 kPa (159.5-198.7 psi)
looks like this
- $140 -
F20000145 210 ltr/hr at 300 kPa with 13.5V source draws 10 amps
shutoff pressure 500-950 kPa
looks like this
- $115 -
F20000158 109 ltr/hr (28.8 gal/hr) at 620 kPa (90 psi) with 11.5V source draws 9.0 amps
91 ltr/hr (24.0 gal/hr) at 775 kPa (112 psi) with 11.5V source draws 10.0 amps
looks like this
- $200 -
F20000283
(a.k.a. FGB-1)
87 ltr/hr (23.0 gal/hr) at 300 kPa (43 psi) with 13.8V source draws 3.8 amps
71 ltr/hr (18.8 gal/hr) at 400 kPa (58 psi) with 13.8V source draws 4.7 amps
looks like this
- $90 -
GSS436
Used in some Mercury Marine applications
114 ltr/hr at 300 kPa (43 psi) with 13.0V source [draws 6 amps max]
looks like this
- $90 -
F20000297
(a.k.a FGB-10)
76 ltr/hr at 300 kPa w/ 13V source [drawing 4.4 amps max]

- $115 -
AOU069
Arctic Cat 0670-231
Arctic Cat 1670-635
45 ltr/hr (11.9 gal/hr) at 310 kPa (45 psi) with 13.2V source draws 6.5 amps
looks like this
- No Longer Available

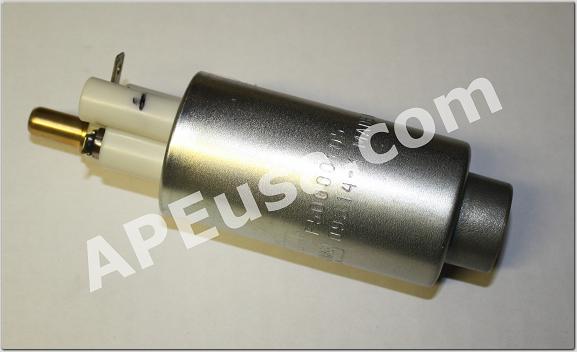

F50000105
Formerly AOU453
114 ltr/hr (30.2 gal/hr) at 172 kPa (25 psi) with 14.4V source draws 6.8 amps max
looks like this
- $90 -
F10000121
80 ltr/hr at 300 kPa w/ 13.5V source draws 6.5 amps max

- $75 -

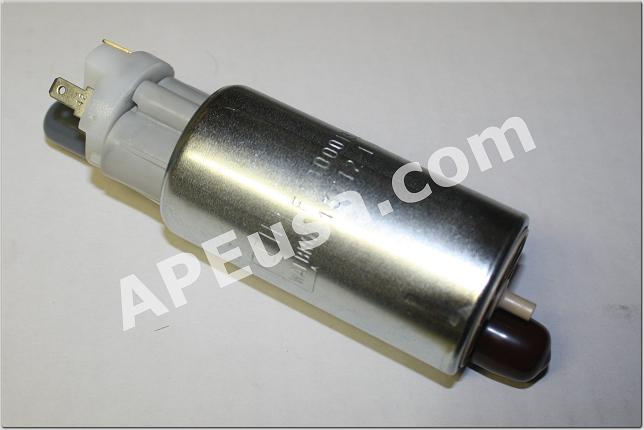

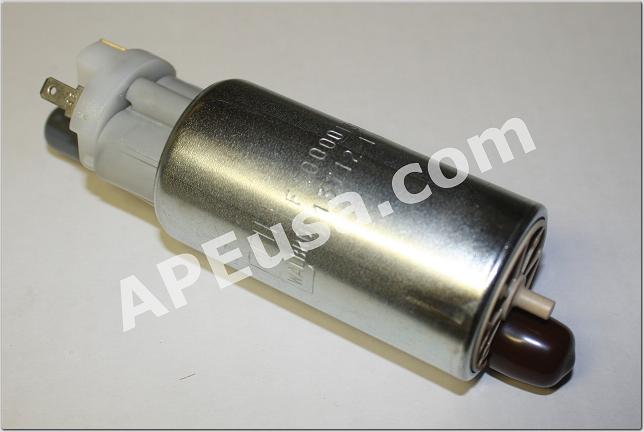

F10000132
36 gal/hr at 40 psi w/ 12V source
looks like this
- $70 -
F10000134
42 gal/hr at 40 psi w/ 12V source
looks like this
- $80 -

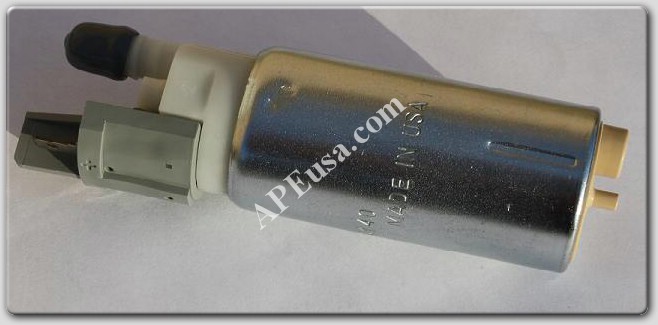

F10000140
This is an LPG pump
looks like this
- No Longer available - use F1000286
F10000286
Replaces F1000140
110-180 ltr/hr at 400 kPa with 13.0V source draws 9 amps
shut-off pressure 650-900 kPa
looks like this
- $85 -
E-85 Fuel pump Originally found on FFV Ford Taurus
43 gal/hr at 40 psi w/ 13.5V source
[size, flow]
- $100 -

NOTE: The above table lists ONLY fuel pumps. If you get one of those pumps, you will NOT receive any other parts [e.g. pickup filter, wiring, etc.].

Specialty Fuel Pump Assemblies

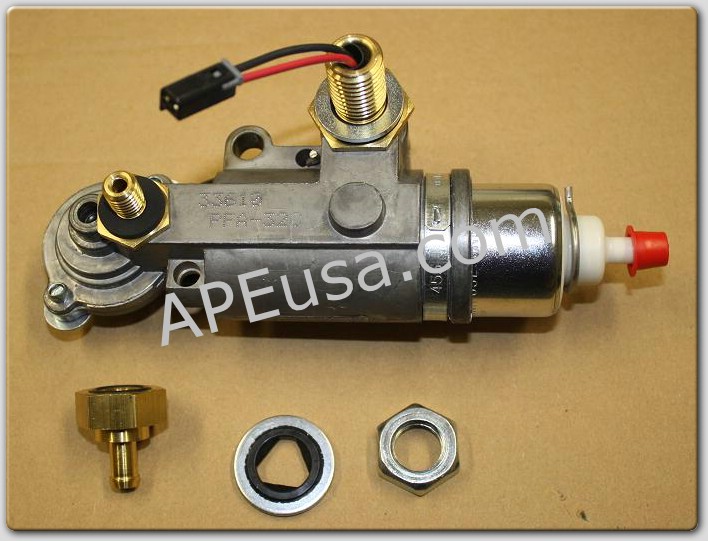

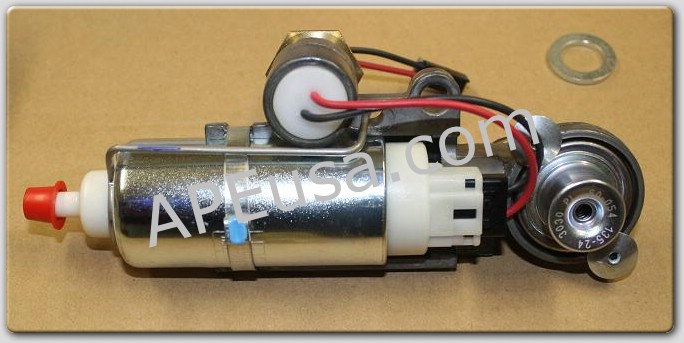

PFA-32 In-tank pump, housing, regulator, and wiring
used in ATVs, snowmobiles, etc. pic1 pic2
(includes GSC404)
- $200 -
