Intercooler Pumps

Johnson circulation pumps

This page started as a description of a drop-in replacement intercooler pump for the GMC Syclone and Typhoon.   Over the past few years, others have discovered the need for similar circulation pumps for their air/water intercooler systems.

We originally found the Jabsco 59500-0012 circulation pump.   We encountered supply issues with that pump about the same time we then discovered the Johnson CM30P7-1 pumps.   We now carry only the Johnson pumps.

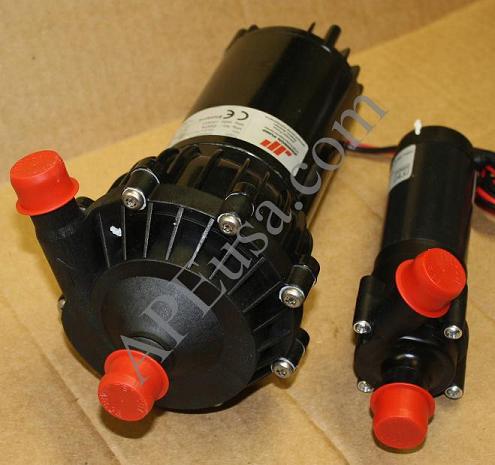

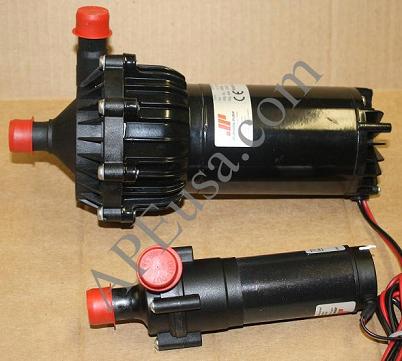

Johnson (an SPX company) CM30P7-1 [a.k.a. CM30]


Highlights

Published flow data:



Pressure
bar
Flow
gal/min
Amps
12V
Amps
24V
0.10 6.9 2.2 1.1
0.20 5.2 2.0 1.0
0.30 2.4 1.7 0.75

Here are scans of a few pages of the instruction manual.

Description Part Num Fittings Voltage Flow Price
CM30P7-1 10-24503-03 or
10-24488-03
16mm
(5/8 in)
12V 5.2 g/m @ 0.1 bar $145
CM30P7-1 10-24504-03 or
10-24489-04
20mm
(3/4 in)
12V 6.9 g/m @ 0.1 bar $145
CM30P7-1 10-24504-04 20mm
(3/4 in)
24V 6.9 g/m @ 0.1 bar $145

Johnson (an SPX company) CM90P7-1 [a.k.a. CM90]

Highlights

Here are scans of a few pages of the instruction manual.

Description Part Num Fittings Voltage Flow Price
CM90P7-1 10-24750-01 20mm
(3/4 in)
12V 17.2 g/m @ 0.1 bar $325
CM90P7-1 10-24750-02 20mm
(3/4 in)
24V 17.2 g/m @ 0.1 bar $325
CM90P7-1 10-24664-01 38mm
(1.5 in)
12V 30.4 g/m @ 0.1 bar $325
CM90P7-1 10-24664-02 38mm
(1.5 in)
24V 30.4 g/m @ 0.1 bar $325
