Walbro Reciprocating Fuel Pumps
For many decades, Walbro has made the 2000 Series and 6000 Series fuel pumps. Those pumps were sold with names such as Dupree, Autopluse, AC, Stewart Warner, and Walbro. Those pumps supplied fuel to countless vehicles, boats, stoves, etc. in the past 50 years or so.
Well, the time has come to retire those fuel pump lines. Today's technologies enable Walbro to offer a new design that flows better, requires less current, and doesn't require periodic replacement of a bellows.
NOTE:
Folks looking for a 6V version of the FR Series pumps need to send
e-mail to Walbro's Engine Management Group.
Ask them very nicely to pull the 6V version of the FR Series pumps off the back burner and
make it happen.
STANDARD FEATURES- ALL MODELS
- Current requirement: < 2 amps average
- Reverse polarity protected up to 60 minutes
- Dry run to four (4) hours
- Compatible with all commercially available pump grade gasoline, gasohol. diesel or bio-diesel
- Operating temperature: -40 ~ +70C (-40 ~ +155F)
- Transient voltage protected to 100 volts
- U.S. Coast Guard 16623-1 and 16623-2 approved
- European CE Standards EN 61000-6-2 and EN 6-3-2100 approved

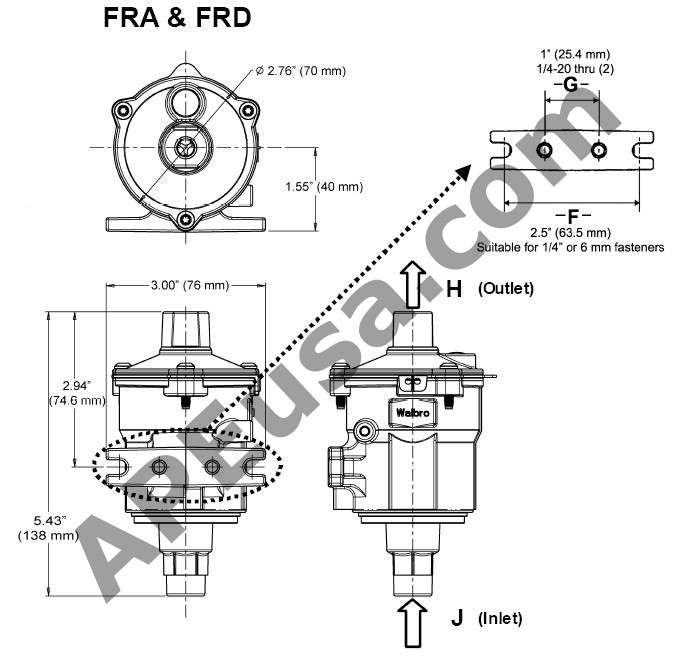

Click here for dimensions of these pumps.

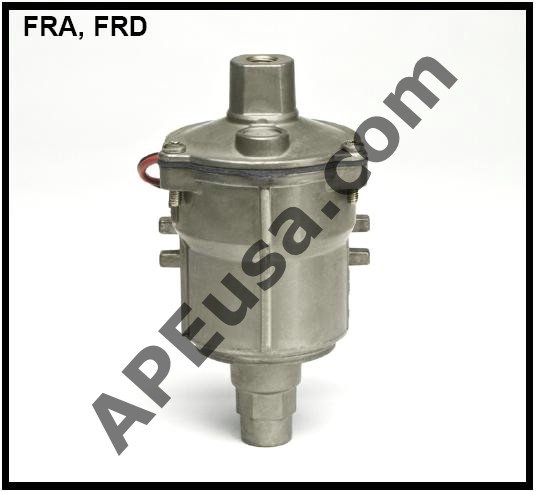

FRA fuel pumps
This pump can be used in many applications that would have previously used the 2000 Series Bellows pumps [e.g 2401, 2402, 2402IP, 2403]. This pump will work great in applications that don't require high fuel pressure or flow rates [e.g. antique cars and small-engine vehicles].
- Flow: to 190 lph (52 gph)
- Self priming (dry lift) up to 24 inches
- Continuous duty life (diesel fuel): >5000 hrs
- Weight: 0.74 kg (1.63 lbs)
- Inlet/Outlet fittings are 1/8-27 NPSF
Unlike the 240x pumps, these are continuous-duty pumps. They will not slow down/stop at a set pressure; they will run whenever power is applied. DO NOT use these pumps for small stoves. Use an FRD pump [below]
| Part Number | Pump | Price |
|---|---|---|
| FRA-1 | 12V, 20 gal/hr, 4.5-7.0 psi, continuous-duty, w/ two 5/16 hose barb fittings [replaces 2401] | $75.00 including US shipping |
| FRA-2 | 12V, 16 gal/hr, 2.5-4.5 psi, continuous-duty, w/ two 5/16 hose barb fittings [replaces 2402] | $75.00 including US shipping |
FRD fuel pumps
The FRD fuel pumps are an intermitent, pump-on-demand pump like the old 2000 Series bellows pumps [e.g. 2401, 2402, 2403].- Flow: to 210 lph (55 gph)
- Self priming (dry lift) up to 24 inches
- Ampere hours: up to 70% less than FRA & FRC
- Continuous duty life (diesel fuel): >10000 hrs
- Weight: 0.75 kg (1.65 lbs)
- Pump cycles only when fuel is demanded
| Part Number | Pump | Price |
|---|---|---|
| FRD-1 | 12V, 20 gal/hr, 4.5-7.0 psi, demand pump, w/ two 5/16 hose barb fittings [replaces 2401] | $85.00 including US shipping |
| FRD-2 | 12V, 10 gal/hr, 2.0-3.5 psi, demand pump, w/ two 5/16 hose barb fittings [replaces 2402] | $85.00 including US shipping |
Click here for dimensions of these pumps.
FRB fuel pumps
- Flow: to 225 lph (60 gph)
- Self priming (dry lift) up to 48 inches (120 w/ check valve)
- Ampere hours: up to 70% less than FRA & FRC
- Continuous duty life (diesel fuel): >18000 hrs
- Weight: 0.83 kg (1.83 lbs)
- Pump cycles only when fuel is demanded
- Replaceable filter
- Inlet/Outlet fittings are 1/4-18 NPSF
- 96 hour salt spray test (ASTM B-117)
| Part Number | Pump | Price |
|---|---|---|
| FRB-2 | 24V, 43 gal/hr, 8-11 psi pump, w/ two 5/16 hose barb fittings [replaces 6067] | $110.00 including US shipping |
| FRB-4 | 12V, 45 gal/hr, 8 psi pump [replaces 6150 and 6151] | $120.00 including US shipping |
| FRB-5 | 12V, 45 gal/hr, 8-11 psi pump, w/ two 5/16 hose barb fittings [replaces 6065] | $110.00 including US shipping |
| FRB-11 | 12V, 43 gal/hr 6-8 psi pump, w/ two 5/16 hose barb fittings [replaces 6132] | $110.00 including US shipping |
Certain FRB models have been certified for marine use. They have the following characteristics:
- 1000 hour salt spray test (ASTM B-117)
| Part Number | Pump | Price |
|---|---|---|
| FRB-13 | 12V, 43 gal/hr 6-8 psi Marine pump [replaces 6802] | $115.00 including US shipping |
| FRB-15 | 24V, 34 gal/hr 6-8 psi Marine pump Mil Spec, single-connector wiring | $115.00 including US shipping |
| FRB-16 | 24V, 43 gal/hr 6-8 psi Marine pump [replaces 6803] | $115.00 including US shipping |
| FRB-17 | 24V, 34 gal/hr 6-8 psi Marine pump with Packard Electic wiring connector | $115.00 including US shipping |
| FRB-20 | 12V, 33 gal/hr 2-4 psi Marine pump [replaces 6805] | $120.00 including US shipping |
| FRB-22 | 12V, 43 gal/hr, 8-11 psi Marine pump | $120.00 including US shipping |
| FRB-23 | 24V, 43 gal/hr, 8-11 psi Marine pump | $120.00 including US shipping |
FRC fuel pumps
- Flow: to 210 lph (55 gph)
- Self priming (dry lift) up to 48 inches
- Continuous duty life (diesel fuel): >10000 hrs
- Weight: 0.83 kg (1.83 lbs)
- Pump cycles continuously when power is on
- Replaceable filter
- Replaceable filter
The FRC-8 was the first FRC pump produced because it is the pump used by all the refers on big-rig trailers. This pump can lift fuel several feet and has a check valve to keep the pump primed.
| Part Number | Pump | Price |
|---|---|---|
| FRC-6 | 12V, 36 gal/hr, 4-6 psi pump | $100.00 including US shipping |
| FRC-8 | 12V, 28 gal/hr, 9-12 psi pump [replaces 6103] | $100.00 including US shipping |
Accessories
| Part Number | Pump | Price |
|---|---|---|

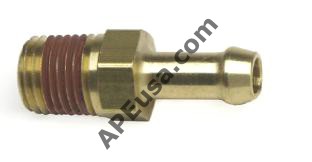

| Straight-1/8 | Straight 1/8-27 NPTF to 5/16 hose barb | $3.00 plus shipping |

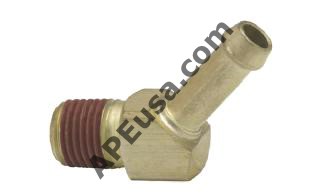

| 45-1/8 | 45-degree 1/8-27 NPTF to 5/16 hose barb | $13.50 plus shipping |

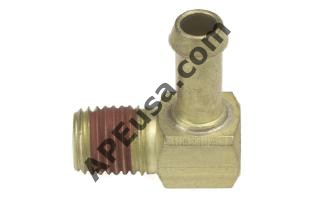

| 90-1/8 | 90-degree 1/8-27 NPTF to 5/16 hose barb | $5.00 plus shipping |

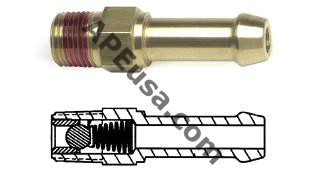

| Check-1/8 | Straight 1/8-27 NPTF to 5/16 hose barb with check valve | $6.00 plus shipping |
| Straight-1/4 | Straight 1/4-18 NPTF to 5/16 hose barb | $4.50 plus shipping |
| 45-1/4 | 45-degree 1/4-18 NPTF to 5/16 hose barb | $7.00 plus shipping |
| 90-1/4 | 90-degree 1/4-18 NPTF to 5/16 hose barb | $6.00 plus shipping |
| Check-1/4 | Straight 1/4-18 NPTF to 5/16 hose barb with check valve | $7.00 plus shipping |
| Screen 420 | 420 micron inlet screen kit for FRB/FRC with o-rings | $4.50 plus shipping |
| Screen 70 | 70 micron inlet screen kit for FRB/FRC with o-rings | $4.50 plus shipping |

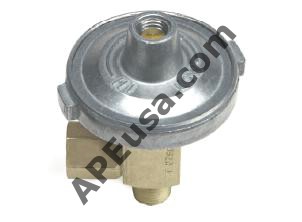

| Regulator | Inline adjustable fuel pressure regulator [1.75 to 5 psi] with two 5/16 hose barb fittings | $40 plus shipping |
