Walbro In-tank Fuel Pump Accessories

If you can't find your vehicle on the application chart of the intank page, take a look at these parts.   Maybe you can find something you can use.


wiring pigtail

The GSSxxx Walbro pumps don't have simple terminal lugs for power connections. Walbro makes a special snap-in connector that plugs into the pump. A significant number of vehicles will plug right into the pump, but some don't. A 12-inch wiring pigtail w/ two fuel-resistant butt connectors is $5.00.

A 42-inch wiring pigtail w/ two fuel-resistant butt connectors is $6.00.

Or take the DIY approach and buy the pieces to crimp onto your own wires.   Parts include the plastic shell, the retainer, and two terminals.   Each kit is $2.00.   some assembly required

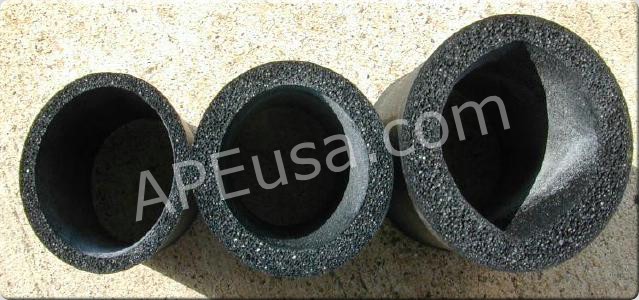

foam sleave

Some kits come with a foam sleeve to help isolate the pump and keep it from flopping around.   The GSSxxx pumps are 39 mm in diameter. To make the pump larger, so it will fit in certain holders, or to dampen some of the noise, you can put the pump in a foam sleeve.



Part Description Price
Thin Makes pump/sleeve diamter about 44 mm $1.00
Medium Makes pump/sleeve diameter about 48 mm $2.00
Thick Makes pump/sleeve diameter about 55 mm
NOT foam - solid neoprene
$3.00

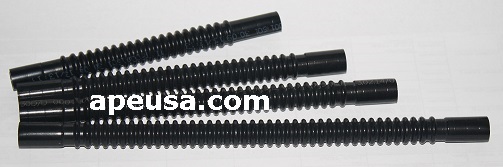

flex hose

Many newer applications have a pump module with a flex hose in it.   About the only way to get a pump in the module is to destroy the flex hose.   Have no fear; We have several corrugated, flex hoses to choose from.   These have been approved for gasoline, diesel, and E85. They are rated at a burst pressure over 300 psi.

End ID Length Price
8 mm on each end 136 mm
[5.35 in]
$3.25
8 mm on each end 160 mm
[6.30 in]
$3.50
8 mm on each end 172 mm
[6.77 in]
$3.75
8 mm on each end 188 mm
[7.40 in]
$4.00
8 mm on each end 225 mm
[8.86 in]
$4.25
8 mm on each end 236 mm
[9.29 in]
$4.50
8 mm on each end 275 mm
[10.83 in]
$4.75
8 mm on each end 284 mm
[11.18 in]
$5.00
8 mm on each end 350 mm
[13.78 in]
$5.25
8 mm on each end 380 mm
[14.96 in]
$5.50
End ID Length Price
10 mm on each end
straight tube; not corrugated
50 mm
[1.97 in]
$4.00
10 mm on each end 80 mm
[3.15 in]
$4.00
10 mm on each end 120 mm
[4.72 in]
$4.25
10 mm on each end 160 mm
[6.30 in]
$4.50
10 mm on each end 180 mm
[7.09 in]
$4.75
10 mm on each end 220 mm
[8.66 in]
$5.00
10 mm on each end 240 mm
[9.45 in]
$5.50
End ID Length Price
8 mm on one end
10 mm on one end
120 mm
[4.72 in]
$5.50

fuel hose

If you need to put a piece of high pressure hose in your fuel tank, be sure it's rated for in-tank use.   Your typical parts store high pressure EFI hose is only rated for outside the tank use [SAE J30R9].   That hose will turn to mush in no time.   A six-inch piece of 5/16 high-pressure, in-tank hose made to Chrysler specs [not-quite-J30R10 spec] is $3.00.

If you need honest-to-goodness SAE J30R10 hose, that's gonna cost you a bit more.   Your typical parts store will probably only have 1-ft pieces.   We can cut you any length you want.   The 5/16 ID J30R10 hose is $20.00 per foot or $1.75 per inch if you need less.

The 3/8 ID J30R10 hose is $20.00 per foot or $1.75 per inch if you need less.

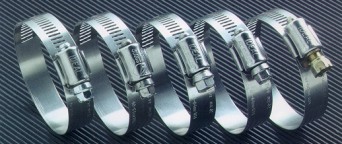

hose clamp

You'll probably need a couple hose clamps if you get the J30R10 hose or the flex hose.   We have some in case you don't want to bother with running down to the hardware store.   These stainless #4 hose clamps are $0.60 each.


125-135b

If you put the GSS242, GSS307, or GSS340 in a custom application you're going to need a pickup filter.   If one of the kits below doesn't have a filter that will work, here is a small, flat pickup filter that's only 4 inches long and 2.25 inches wide.   These filters are $4.00 each.

125-157

This is the same filter as the one in the Mustang kit (Kit26).   It's 5.25 inches long and 2.25 inches wide.   These filters are $6.00 each.

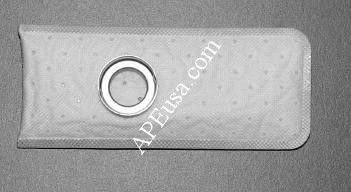

1250570

Here's a pickup filter for the F20000169 pump.   It is 4 inches long and 1.625 inches wide.   These filters are $5.00 each.

125-547

Here's a pickup filter for the 516 pump.   This is also the filter that was used on the GSS340M pumps.   It is 4 inches long and 1.75 inches wide.   These filters are $6.00 each.

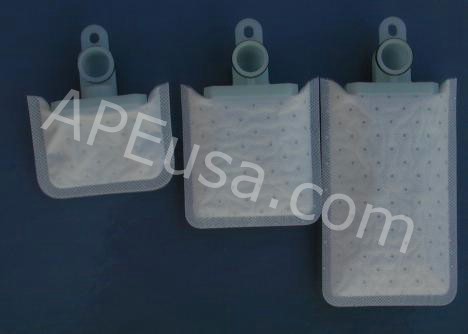

pickup filters for denso-like pumps

If you need a pickup filter for a GSS250, GSS278, GSS315, GSS317, GSS341 or GSS342, we carry a few.

Part Description Price
Tiny Pickup filter that is 2.25 inches wide by 2.625 inches long $6.00
Short Pickup filter that is 2.25 inches wide by 3.25 inches long $8.00
Long Pickup filter that is 2.25 inches wide by 4.50 inches long $8.00

Walbro Fuel Pump Kits

The following kits will fit the following pumps:





kit 1
Kit 1 - $30.00
kit 2
Kit 2 - $15.00
kit 3
Kit 3 - $20.00
kit 4
Kit 4 - $25.00
kit 5
Kit 5 - $26.00
kit 6
Kit 6 - $21.00
kit 7
Kit 7 - $21.00
kit 8
Kit 8 - $24.00
kit 9
Kit 9 - $21.00
kit 10
Kit 10 - $14.00
kit 11
Kit 11 - $19.00
kit 12
Kit 12 - $20.00
kit 13
Kit 13 - $23.00
kit 14
Kit 14 - $25.00
kit 15
Kit 15 - $26.00
kit 16
Kit 16 - $21.00
kit 17
Kit 17 - $17.00
kit 18
Kit 18 - $27.00
kit 19
Kit 19 - $29.00
kit 20
Kit 20 - $27.00
kit 21
Kit 21 - $31.00
kit 22
Kit 22 - $24.00
kit 23
Kit 23 - $18.00
kit 24
Kit 24 - $17.00
kit 25
Kit 25 - $17.00
kit 34
Kit 34 - $19.00
kit 36
Kit 36 - $23.00


The following kits will fit the following pumps:





kit 26
Kit 26 - $21.00
kit 28
Kit 28 - $41.00
kit 29b
Kit 29 - $18.00
kit 30
Kit 30 - $19.00
kit 31
Kit 31 - $19.00
kit 32
Kit 32 - $12.00
kit 33
Kit 33 - $--
Discontinued - May 2019
kit 37
Kit 37 - $18.00

The following kits will fit the following pumps:





kit 27
Kit 27 - $19.00
