Walbro Series 6000 Fuel Pumps

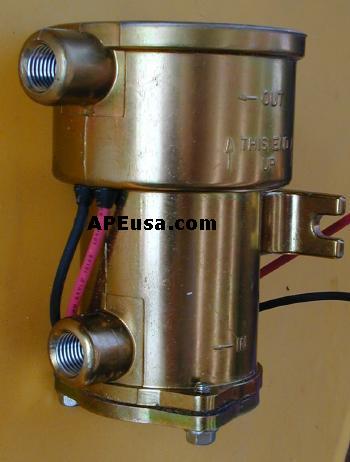

Walbro 6000 series pump

Walbro's Series 6000 pumps offer exceptional performance in a variety of demanding applications.   The are perfect for automotive, truck, off-highway, agriculture, RV, and military or industrial applications. These pumps can handle gasoline, diesel fuel and many other fluids.

Because Series 6000 pumps have only three moving parts, there is practically nothing to wear out.   Electronic circuitry, encased in epoxy to resisty shock and vibration, eliminates mechanical switching for exceptional reliability.   A magnetic filter traps metallic particles.   Two filters are offered: 70 micron for gasoline pumps or 420 micron for diesel pumps.   Filters are easily accessible for cleaning.

Series 6000 pumps are available in pressure ratings from 3 to 10 psi.   Military-approved models are available.   Series 6000 pumps are self-priming and have high lift capabilty.   The 10 psi version is particularly useful with high heads, long lines and high lifts.

The Series 6000 lineup includes three models which are widely used in truck refrigeration units throughout the world.   THese service replacement units are available in gasoline and diesel versions.



Part Number Pump Old Part Number Price
Heavy Duty/High Performance
6132 12V, 7 psi, 43 gal/hr, negative ground, 1/4" NPSF orifice, w/ gasoline filter
flow graph
6013W discontinued
use FRB-11 pump
6131 12V, 5 psi, 36 gal/hr, negative ground, 1/4" NPSF orifice, w/ gasoline filter
flow graph
6001W discontinued
6146 12V, 5 psi, 36 gal/hr, negative ground, 1/8" NPSF orifice, w/ gasoline filter
flow graph
6018W discontinued
6065 12V, 10 psi, 45 gal/hr, negative ground, 1/4" NPSF orifice, w/ diesel filter
flow graph
6065W, 6136 discontinued

use FRB-5 pump
6067 24V, 10 psi, 43 gal/hr, negative ground, 1/4" NPSF orifice, w/ diesel filter
flow graph
6067W discontinued

use FRB-2 pump
RV Fuel Pump
6150 12V, 8 psi, 45 gal/hr, Gasoline, John Deere/Oshkosh Chassis, Chev 454 n/a discontinued

use FRB-4 pump
6151 12V, 8 psi, 45 gal/hr, Gasoline, John Deere Chassis, Ford 460 RE36566
RW24286
discontinued

use FRB-4 pump
Truck/Trailer Refrigeration Replacement Pumps with check valves
6104 12V, 5 psi, 1/8" NPSF orifice, w/ gasoline filter 6104W discontinued
6103 12V, 10 psi, 1/8" NPSF orifice, w/ diesel filter 6103W discontinued
use FRC-8 pump

Walbro Marine Pumps

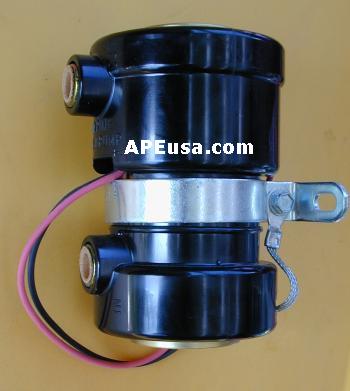

Walbro Marine Pump

Walbro marine electronic pumps are engineered to the strictest safety requirements.   They exceed the fire resistance, corrosion reistance and dielectric requirements of the Marine Division of Underwriters Laboratory.   They also meet the "Boat and Associated Equipment Safety Standards for Electrical and Gasoline Fuel Systems" published by the United States Coast Guard, January 31, 1977.

Walbro marine diesel electronic pumps provide dependable, pressure-controlled fuel supply.   They can pull or push fuel.   they are self priming, eliminate hand pumping, and reduce vapor lock problems.   They can be used as a completely independent fuel pump system, or as a booster or standby unit.   They can transfer diesel or gasoline.

Thanks to a solid state design, mechanical switching elements are eliminated for reliable operations.   Only three moving parts are incoporated in the pump, so there is little to wear out.   The electrical system is fully insulated and sealed, with a two-wire hookup and static ground connection.   Current draw is low.   Two filters are used.   A magnetic filter traps metallic particles while a microbon filter dissipates water and collects fine particles.

These pumps are labeled "Diesel Use Only," but they work great with gasoline, too.   The label is mainly there to protect the manufacturer - If your boat has a gasoline leak, your boat catchs fire, and you die, no one wants to get blamed for it.



Part Number Pump Old Part Number Price
6802 12V, 7 psi 43 gal/hr Marine pump, Neutral ground 1/4 NPSF female fittings
flow graph
6092 discontinued
use FRB-13 pump
6805 12V, 4 psi 33 gal/hr Marine pump, Neutral ground, 1/4 NPSF female fittings
flow graph
6095 discontinued
use FRB-20 pump
6803 24V, 7 psi 43 gal/hr Marine pump, Neutral ground 1/4 NPSF female fittings
flow graph
6093 discontinued
use FRB-16 pump
6806 24V, 4 psi 33 gal/hr Marine pump, Neutral ground 1/4 NPSF female fittings
flow graph
6096 discontinued

Parts and Accessories

You can purchase these parts online by adding them to your shopping cart. Click on "checkout" when you are done.



Part Number Comments Price
300-1000 Replacement 420 micron [diesel] filter for non-marine Series 6000 pumps
[contains filter and cork gasket]
$5
plus shipping
300-1001 Replacement 70 micron [gasoline] filter for Series 6000 pumps
[contains filter and cork gasket]
$5
plus shipping
300-1009 Replacement 70 micron filter for Marine pump
[contains filter and o-ring seal]
No longer available
300-1000 and 300-1001 contain the same screens, but no O-ring
